UK Energy Watch
Electricity Fuel Type - Instantaneous real-time data
Fuel typeCurrent PowerCO2 emissions
Combined Cycle Gas Turbine 15,701 MW 41.9 % 1,602 kg/S
Open Cycle Gas Turbine 0 MW 0.0 % 0 kg/S
Oil 0 MW 0.0 % 0 kg/S
Coal 5,381 MW 14.4 % 1,462 kg/S
Nuclear 6,044 MW 16.1 % 0 kg/S
Wind 7,014 MW 18.7 % 0 kg/S
Pumped Storage Hydro 289 MW 0.8 % 0 kg/S
Non Pumped Storage Hydro 455 MW 1.2 % 0 kg/S
Other 89 MW 0.2 % unknown
Interconnect - France 1,494 MW 4.0 % unknown
Interconnect - Ireland (Moyle) 0 MW 0.0 % unknown
Interconnect - Netherlands 979 MW 2.6 % unknown
Interconnect - Ireland (East-West) 28 MW 0.1 % unknown
Updated: 17 December 2017 11:35:00 (UK local time)

Electricity Grid Frequency - Instantaneous real-time data
Grid Frequency
50.005 Hz
Updated: 17 December 2017 11:37:45 (UK local time)

Gas in-flow - Instantaneous real-time data
TerminalCurrent gas in-flowCO2 emissions
AVONMOUTH LNG 0 m³/s (0.00 Mm³/day) -
BACTON IPS TERMINAL 841.6 m³/s (72.72 Mm³/day) -
BACTON UKCS TERMINAL 233 m³/s (20.13 Mm³/day) -
BARROW TERMINAL 0 m³/s (0.00 Mm³/day) -
DYNEVOR LNG 0 m³/s (0.00 Mm³/day) -
EASINGTON TERMINAL 1,054.1 m³/s (91.07 Mm³/day) -
GLENMAVIS LNG 0 m³/s (0.00 Mm³/day) -
ISLE OF GRAIN TERMINAL 23.9 m³/s (2.06 Mm³/day) -
MILFORD HAVEN TERMINAL 96.2 m³/s (8.31 Mm³/day) -
PARTINGTON LNG 0 m³/s (0.00 Mm³/day) -
ST FERGUS TERMINAL 977.9 m³/s (84.49 Mm³/day) -
TEESSIDE TERMINAL 102.8 m³/s (8.89 Mm³/day) -
THEDDLETHORPE TERMINAL 59.4 m³/s (5.13 Mm³/day) -
Updated: 17 December 2017 11:34:00 (UK local time)

About - Electricity

Electricity in the UK is generated from:

Large power stations can be categorised by which fuel they use to generate electricity, as shown in the table above.


Combined Cycle Gas Turbine (CCGT): A CCGT power plant uses two seperate generation processes: (a) A gas turbine powered by natural gas is directly connected to an electrical generator; and (b) The hot waste gases from the gas turbine are used to generate steam to power a second electrical generator. By combining these two processes in a single power plant the efficiency of the conversion of chemical energy (in the fuel) to electrical energy can be increase to almost 60%, albeit at a modest increase in complexity and cost. All recent gas-powered power stations will be CCGT, rather than Open Cycle Gas Turbine (OCGT). Although a CCGT power plant is the most efficient design of fossil-fuel power station that exists, they still emit large quantities of carbon dioxide, adding to the effects of climate change.

Open Cycle Gas Turbine (OCGT): An OCGT power station is one of the simplest and cheapest power plants, powered by natural gas, with a gas turbine connected to an electrical generater. However, the waste gases from the gas turbine hold a considerable amount of heat energy that is thrown away, unlike in a CCGT power plant. This waste of energy causes an OCGT to be inefficient. There are very few OCGT power stations in the UK. Almost all gas powered plants are now the more efficient CCGT design. As natural gas is a fossil fuel, an OCGT power plant emits large quantites of carbon dioxide, adding to the effects of climate change.

Oil: Oil power stations burn fuel refined from crude oil. In the UK there are very few purely oil-fired power stations, but there are a number of duel-fired power stations; these are capable of burning oil and coal, or oil and gas.

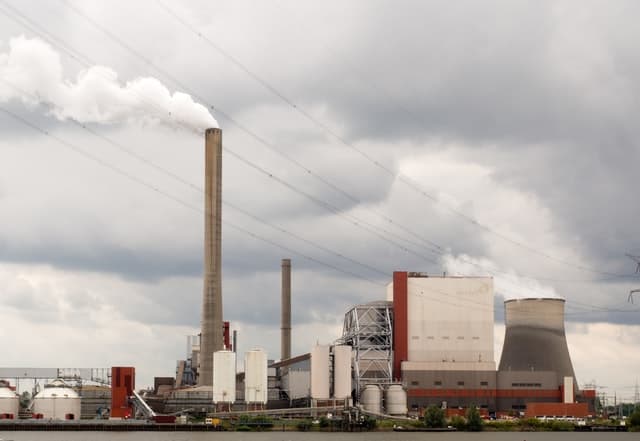

Coal: Coal power stations burn coal to boil water, producing steam which drives a steam turbine which is connected to an electrical generator. These are the least efficient and most polluting of all types of power station in the UK and produce the most CO2 (and other pollutants) per unit of electricity of all fuels.

Nuclear: Nuclear power stations generate electricity from heat generated from nuclear fission. This generated no immediate atmospheric pollution, including generating no CO2; however it does generate radioactive waste that is dangerous over periods of 100 to 10,000 years, depending on the type of nuclear power station that generated them and what reprocessing has been performed.

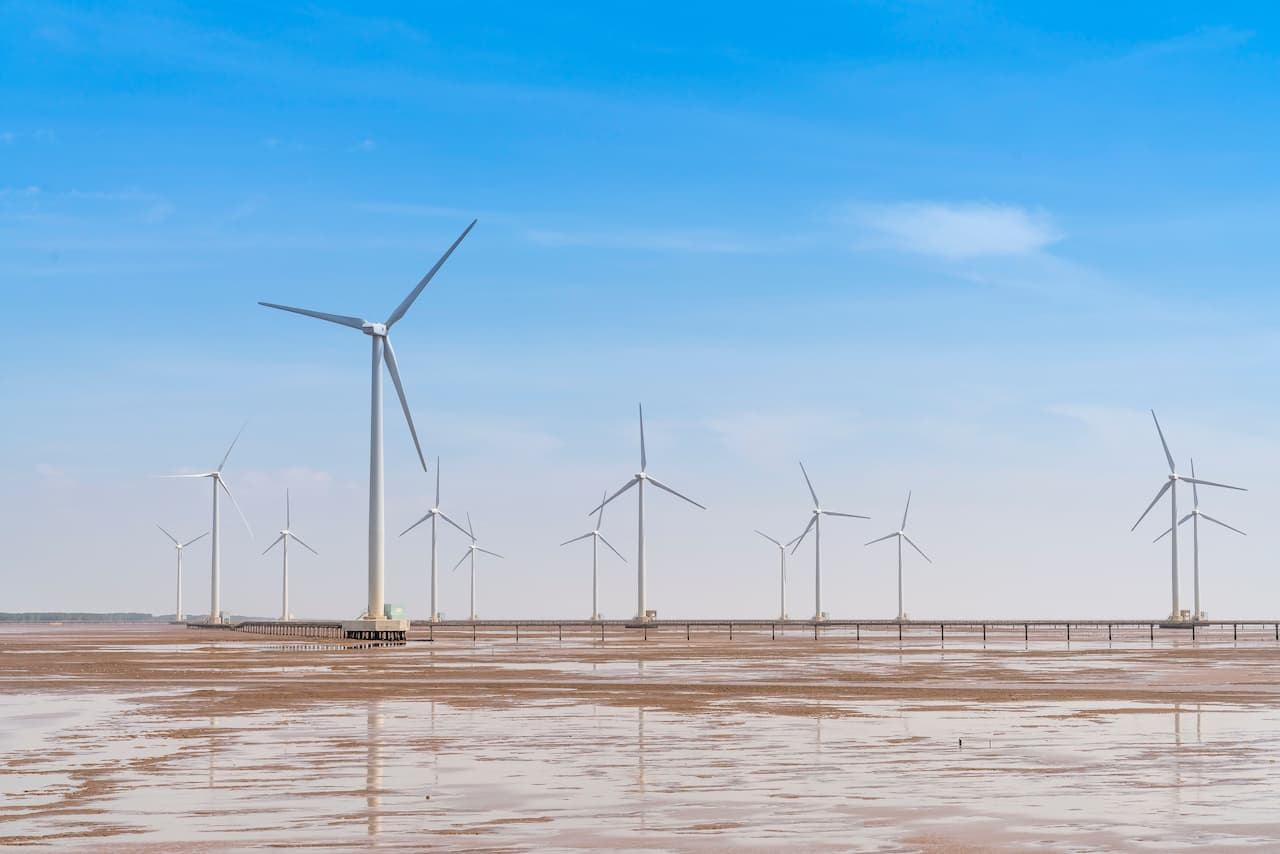

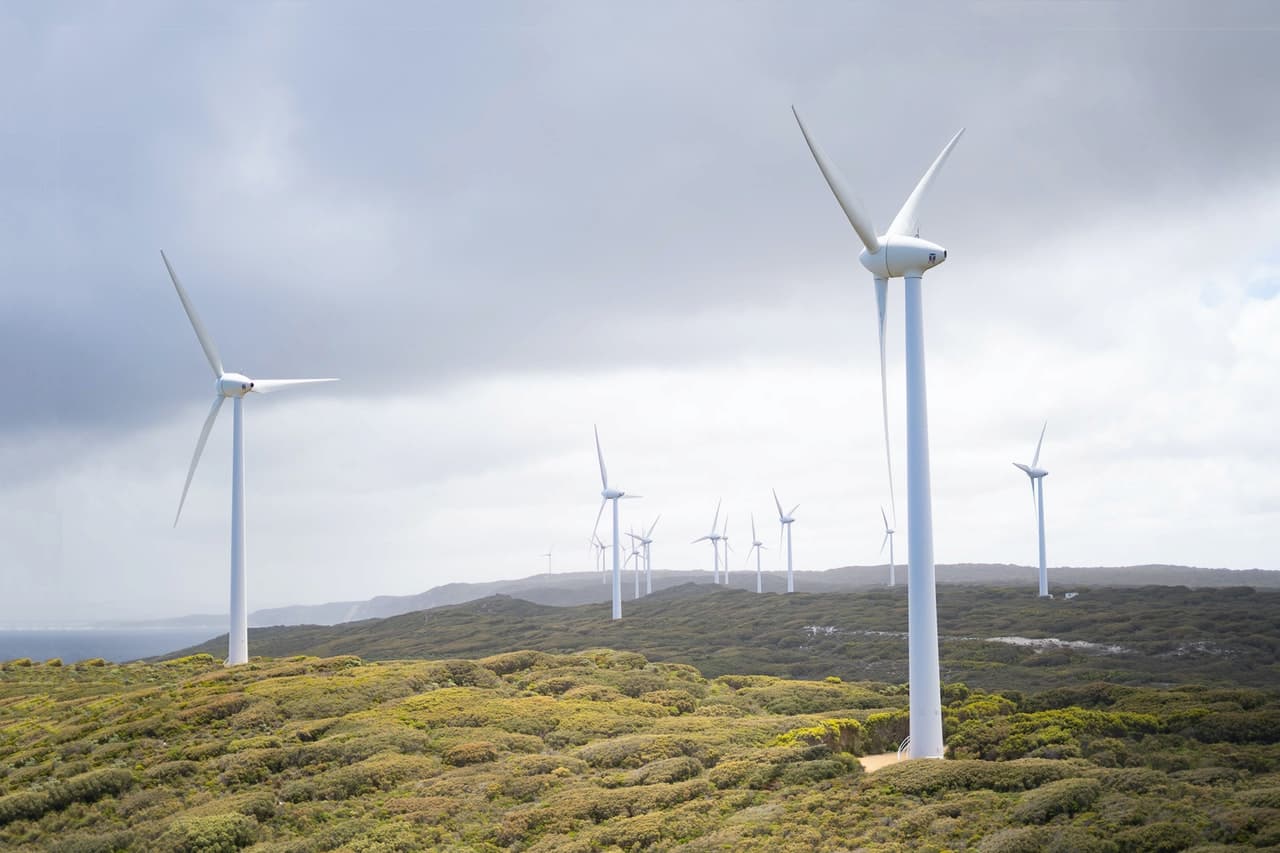

Wind: Wind power is a CO2-free power source which generates no atmospheric pollution at all during operation.

Pumped Storage Hydro: Pumped-storage is used for storing electricity, and it is the only currently viable method of storing useful amounts of electricity for use on the nation electricity grid. Water is pumped from a lower reservoir to a higher reservoir during periods of low national electricity demand, and then released to drive power-generating turbines from the high reservoir during times or high or rapidly rising electrical demand.

Non Pumped Storage Hydro: Hydro-electricity is a CO2-free power source which generates no atmospheric pollution at all during operation.

Interconnects: The UK national grid has four interconnects which allow importing and exporting electricity internationally. These are used when UK electricity demand is significantly different to the demand of the connected country; or when the current price of electricity in each country makes it beneficial to trade electricity.


CO2 Emissions

Burning fossil fuels (coal, oil, gas) produces CO2 (Carbon Dioxide). The quantity of fossil fuels used needs to be reduced for many reasons:

Notice that electricity generation in the UK produces between four and seven tonnes of CO2 every second (depending on the time of day). This is approximately 200 million tonnes of CO2 every year.

This is a lot.


This data updates every 5 minutes.
